Raspberry Pi Project – 1st video



November 28, 2014

Last July I wrote about our project using a raspberry pi and its camera module to track the decay of a plastic handbag. The project has been running for about 4 months now and we complied the first video not so long ago.

To be honest we were more than a little nervous about this project, as to us, little if anything had happened for the majority of the summer, but as the seasons changed a few things started to happen!

We use third-party platforms (including Soundcloud, Spotify and YouTube) to share some content on this website. These set third-party cookies, for which we need your consent. If you are happy with this, please change your cookie consent for Targeting cookies.

So a number of things are pretty clear from the video – the major one being that it’s not as dramatically catastrophic as we had hoped! Ironically the video doesn’t pick up on the areas most changed – like the great big hole on the lower left side that is blocked by the beehive bag, nor does it pick up just how many crystals have formed as they are mostly on the sides. The second is that the limitations of the camera module mean the resolution is low – but for a £25 camera it’s still good enough to give up some great information.

The sides of the bag have had seen a large formation of crystals over the three months
The sides of the bag has seen a large formation of crystals over the three months
IMG_5124

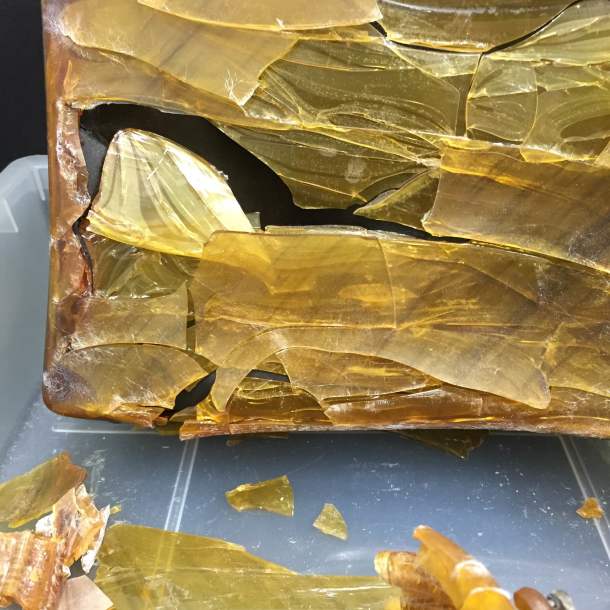

The large crack on the bottom edge of the bag on the left side of the image (proper right of bag) is not seen forming on the time lapse as its photobombed by the edge of the beehive bag
IMG_5122

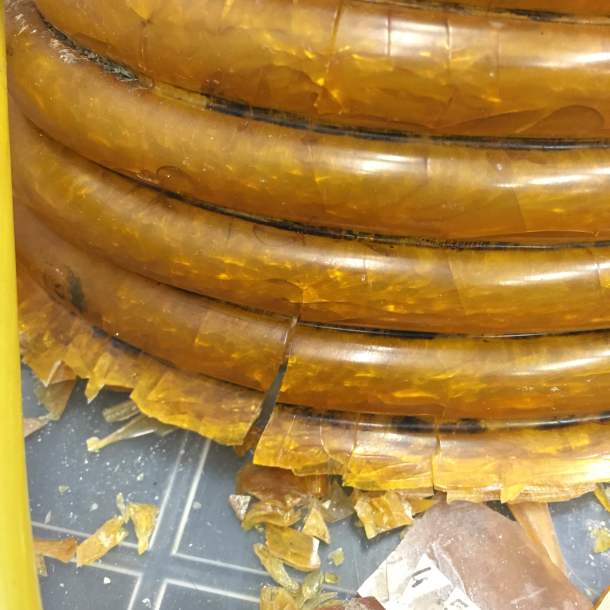

The beehive bag, which I’ve talked about before, is still falling apart! Originally one side broke apart faster that the other, now that ‘better’ half is breaking up. The main crack in the bottom of the picture was only a hairline fracture at the start of the timelapse.

If you look at the video closely you will notice two things of real importance. Firstly, each of the cracks that were present at the start have gotten a little bigger and the delamination of the bag is wider. Remember that we are looking at two months data over a 3 month period, so for things to get noticeably bigger in this timeframe is a real shock in a museum environment. The second thing to notice is the way the cracks grow. If you look closely at the top right corner of the bag you will see the shadow and highlights expand and contract. We also see the beehive bag expand and contract. This might be due to the environmental conditions of our science lab and could be what is ripping our bag apart.

Our next job is to try and improve the video quality and also relate the visual information gained to the data from our environmental monitoring system. From this we may be able to come up with an insight into the storage of plastic objects.

1 comment so far, view or add yours

Comments

Hi, I was lead to your site by the ICON FB page. What time interval are shooting frames at? You might be over complicating things using the pi. I film timelapse using CHDK code on cheap Canon sureshot cameras bought on eBay. You’ll get much higher resolution and the ability to pan and zoom. Happy to discuss if you are interested.
